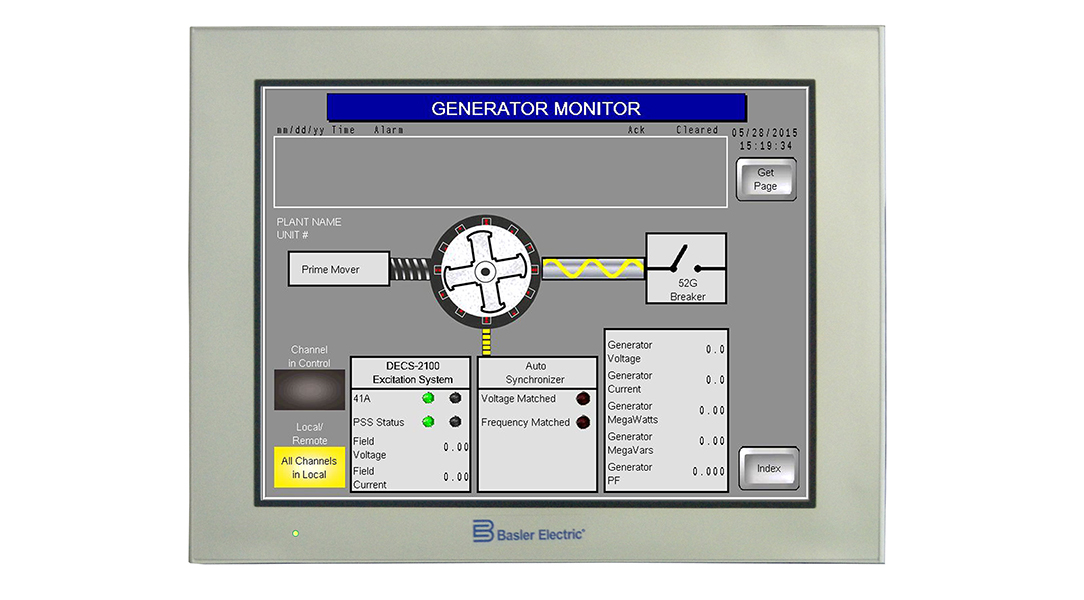

IDP-1201, Interactive Display Panel

The IDP-1201 is a 12.1 inch (307.3mm) diagonal Human Machine Interface (HMI) capable of displaying generator system parameters locally and remotely when utilized with a DECS-2100 Digital Excitation Control System.

Benefits

  • Digital and analog metering views can accommodate personal preferences.
  • Alarm and Metering screens for quick system status indications.
  • Graphically displays generator capability curve, showing real time operating point for up-to-date load status.
  • Optional communication for control room installations, allowing for remote system monitoring.
  • Control screen provides easy set point adjustment.
