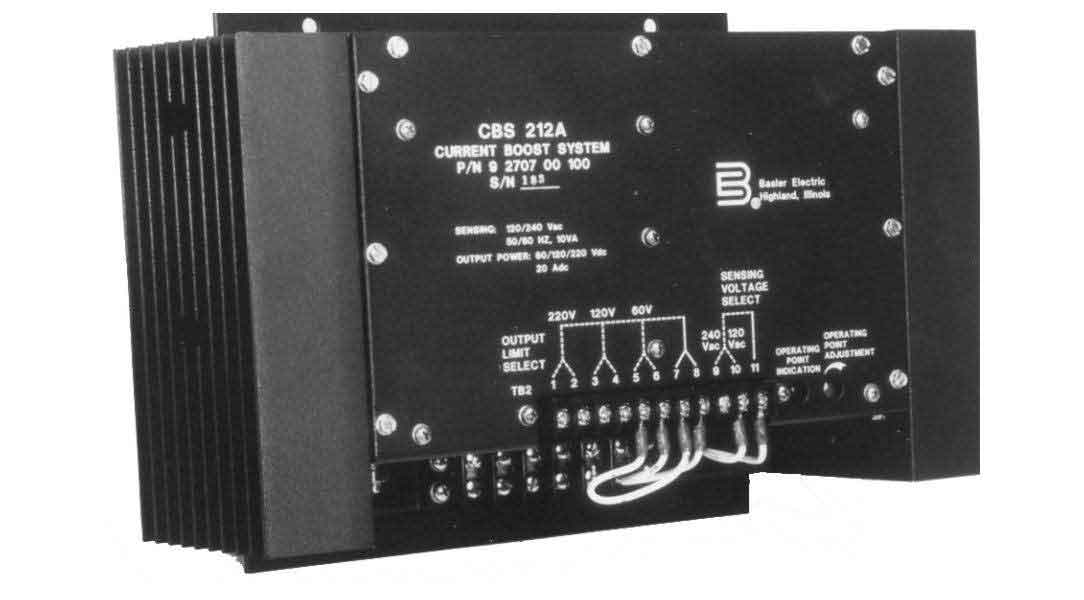

CBS 212A, Current Boost System

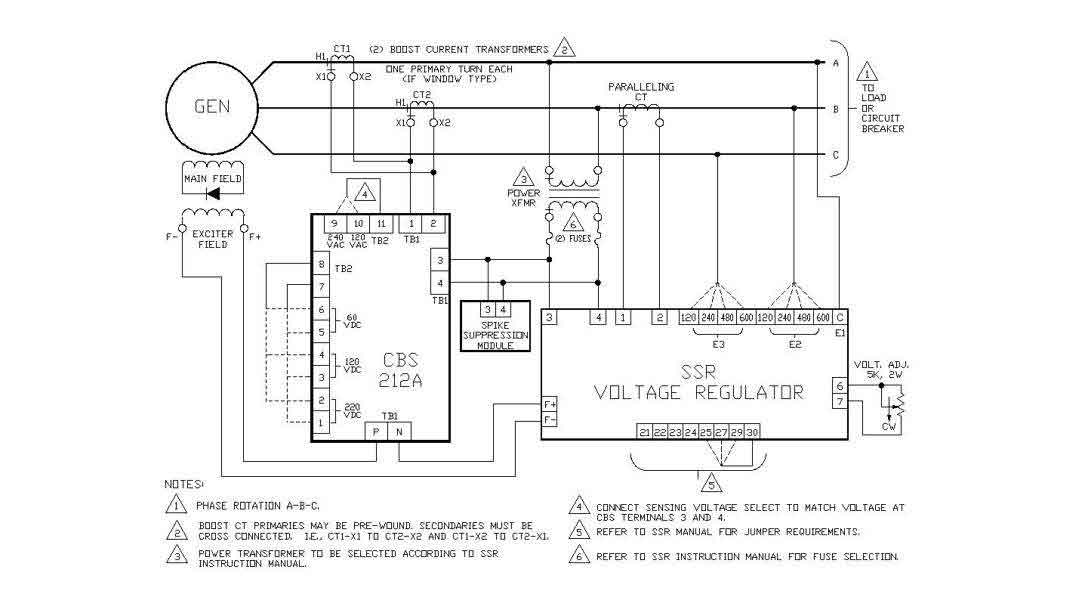

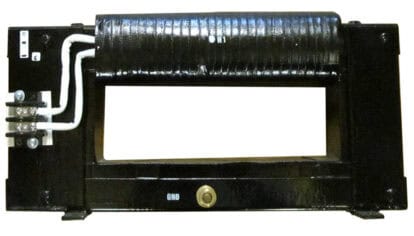

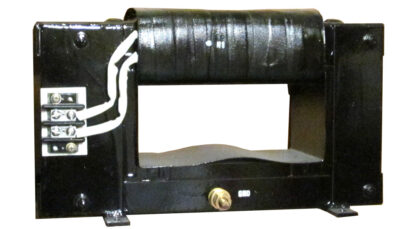

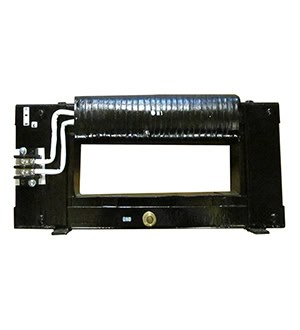

The CBS 212A provides excitation support to the generator during motor start scenarios and in the event of a fault on the generator line. This device utilizes power current transformers located in the generator's output leads that provide excitation current to the field and supply boost to the system for motor starting and fault clearing.

Benefits

  • Instantaneous response by applying required excitation support, maintaining the overall stability of the power system.
  • Eliminates the need for expensive PMG and alternate systems that provide fault-clearing or motor starting current.
  • Easy to install and configure, reducing commissioning time.
