BE1-11 Logic Schemes

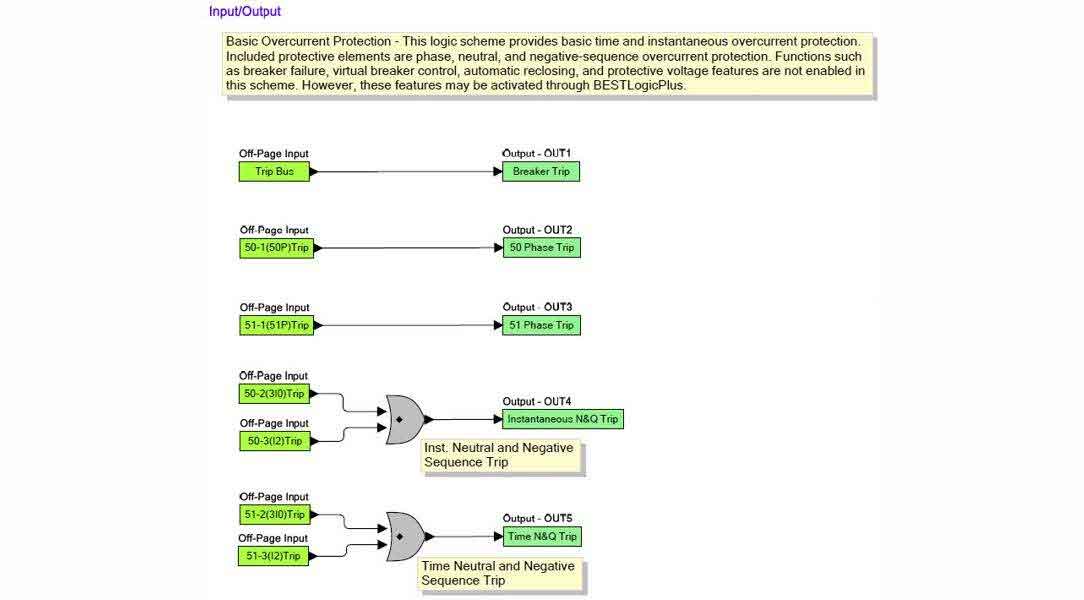

BE1-11 logic scheme provide preprogrammed logic for many common applications such as basic overcurrent protection, low impedance grounded generator protection, and backup bus overcurrent protection. Logic files can be used as supplied or as a starting point for application specific configuration. Included BESTspace™ files open only the tabs that need to be set for a given logic file making it easy to be confident all the needed setting have been made.

Benefits

  • Get started with preprogrammed logic schemes for most applications.
  • Logic is easy to understand with built in comments and labels
  • Necessary settings easily identified by using BESTspace™ to quickly open all required settings tabs.
  • Application note included with each logic file provides the information to step you through setup with ease.
