IDP-1500, Interactive Display Panel

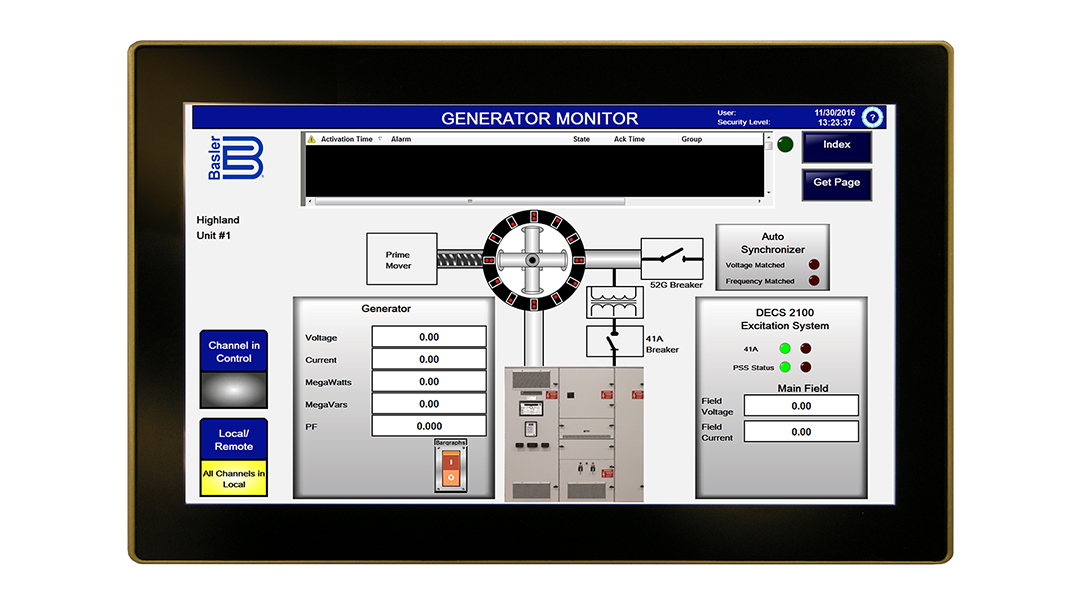

The IDP-1500 is a 15.6 inch (396 mm) diagonal Human Machine Interface (HMI) capable of displaying generator system parameters locally and remotely when utilized with a DECS-2100 Digital Excitation Control System.

Benefits

  • Digital and analog metering views can accommodate personal preferences.
  • Alarm and Metering screens for quick system status indications.
  • Graphically displays generator capability curve, showing real time operating point for up-to-date load status.
  • Optional communication for control room installations, allowing for remote system monitoring.
  • Control screen provides easy set point adjustment.

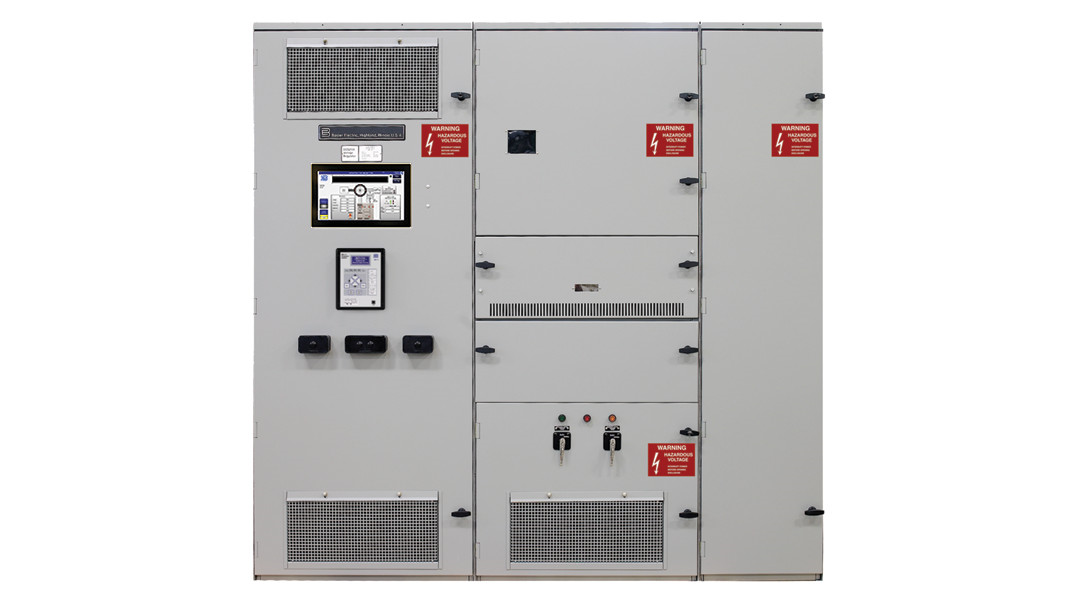

  • Capable of multiple-unit control through remotely mounted IDP-1500.
