Tailored solutions for diverse sectors and challenges.
Our engineering experts have extensive experience working with the major original equipment manufacturers (OEMs) as well as hands-on experience with the upfront system design and system startup on most of the original static excitation systems installed in the 1960s–1990s. Some of these systems include the GE Frame 5/6/7/9, the Westinghouse W251/W501, and the GE LM2500/LM5000 units.

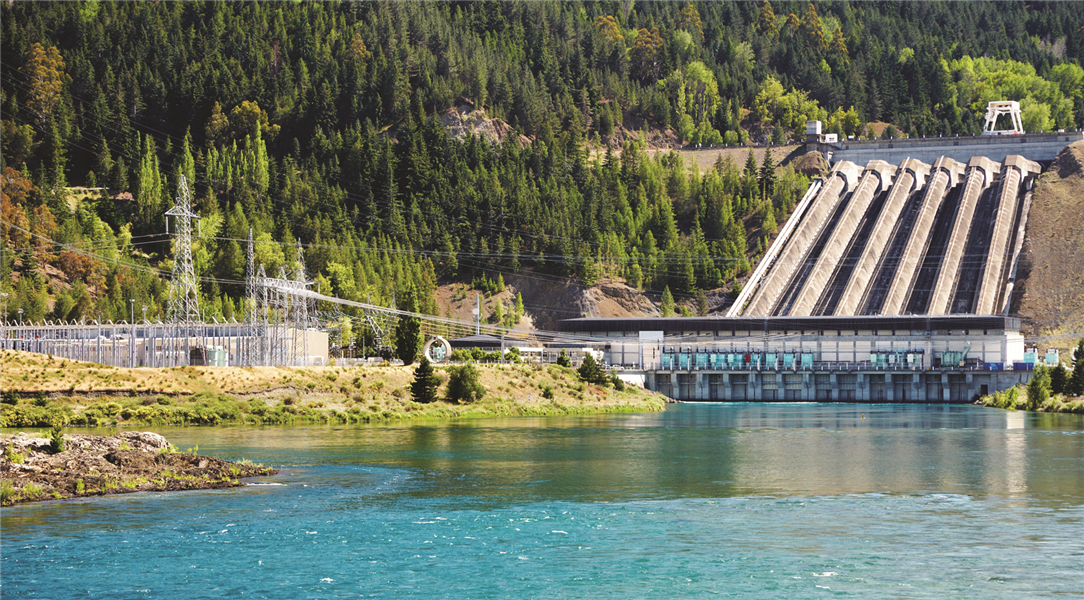

Hydro generators need to have controls that correctly sense pressure in the penstock pipe leading from the dam to the inlet valves of the hydro turbines. The rotating frequency of the generator, voltage level, and VAR flow conditions keep the equipment operating. Correct setting of acceleration, deceleration, voltage level, lubrication quantities, and cooling are all required to ensure continued production of power from this flowing water.
Our engineers understand the specific requirements associated with synchronous motor control and will develop a complete synchronous motor controller system that includes equipment required to safely accelerate the motor and apply the DC voltage to the rotating field at the correct time. This will ensure rapid synchronization while protecting the motor from overload, jam, pull-out, and off-frequency conditions.
Basler Services’ engineers will custom design a Human Machine Interface, or HMI, to provide complete operator functionality specific to your system. Basler Services provides all devices, software, and materials required for the installation, interconnection, and testing of the E2HMI and associated devices.
Our engineers have extensive experience working for the major OEMs and hands-on experience with the upfront system design and system startup on most all of the original voltage systems as installed in the 1960s–1990s. Some of these systems include those provided with the GE and Westinghouse medium & large steam turbines and gas/combustion turbines such as the GE frame 5/6/7/9, the Westinghouse W251/W501, and the GE LM2500/LM5000 units.
From servicing electromechanical relay systems to installing new protection modules, Basler Services, LLC, has the experience to identify the equipment best suited to meet your needs. There are many advantages to upgrading your system protection, such as better system protection flexibility and LCD displays with real-time system monitoring.
Power System Stabilizers can modulate the synchronous machine’s voltage to instantaneously take power from the system or put power into the system by varying the angle between magnetic moment or the rotating field and the rotating magnetic field of the three phase electric system reflected in the voltage on the stationary part of the synchronous machine. If the adjustments of the PSS are set correctly, then power swings into or out of the synchronous machine will act to dampen the system-wide resonant power swings and improve system stability.
